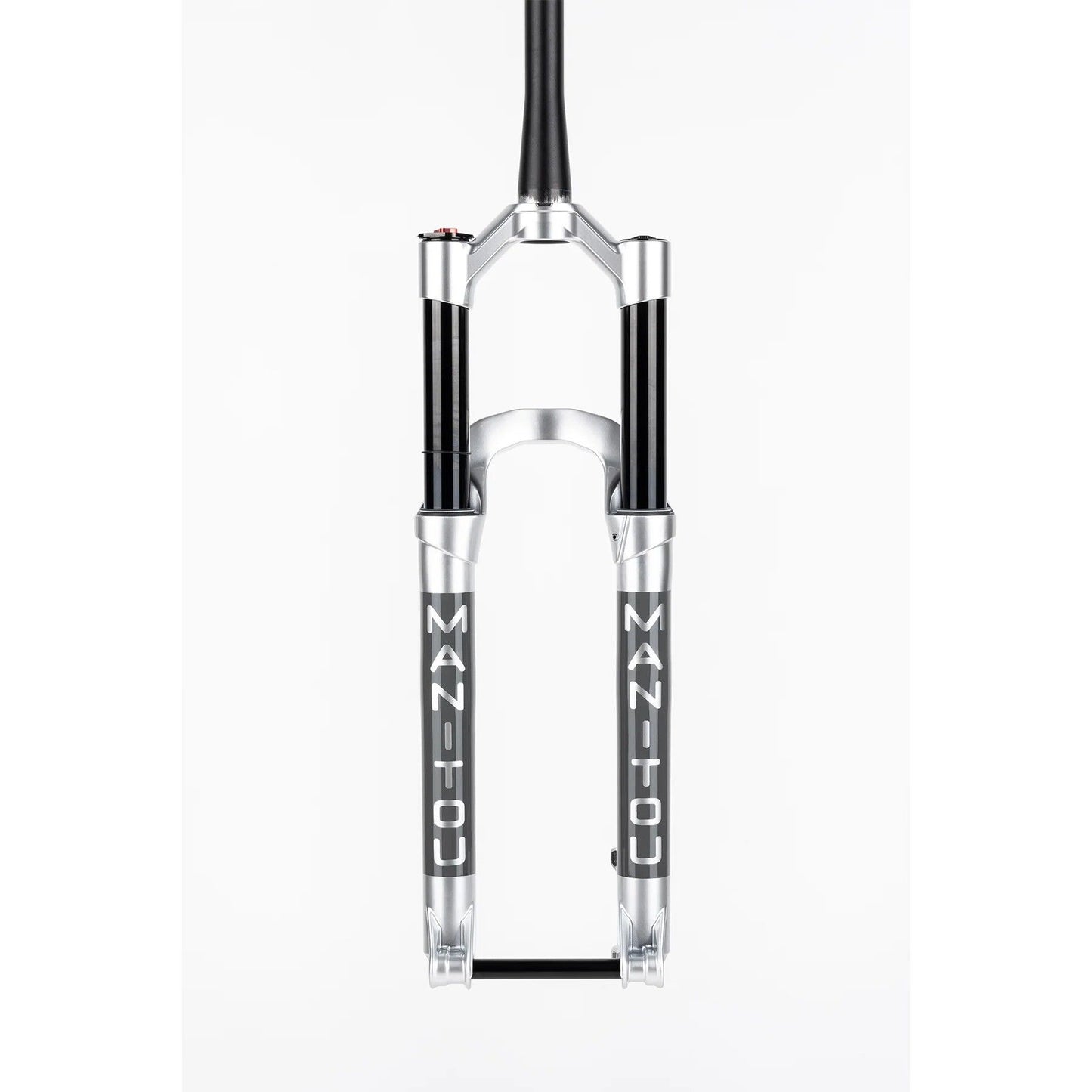

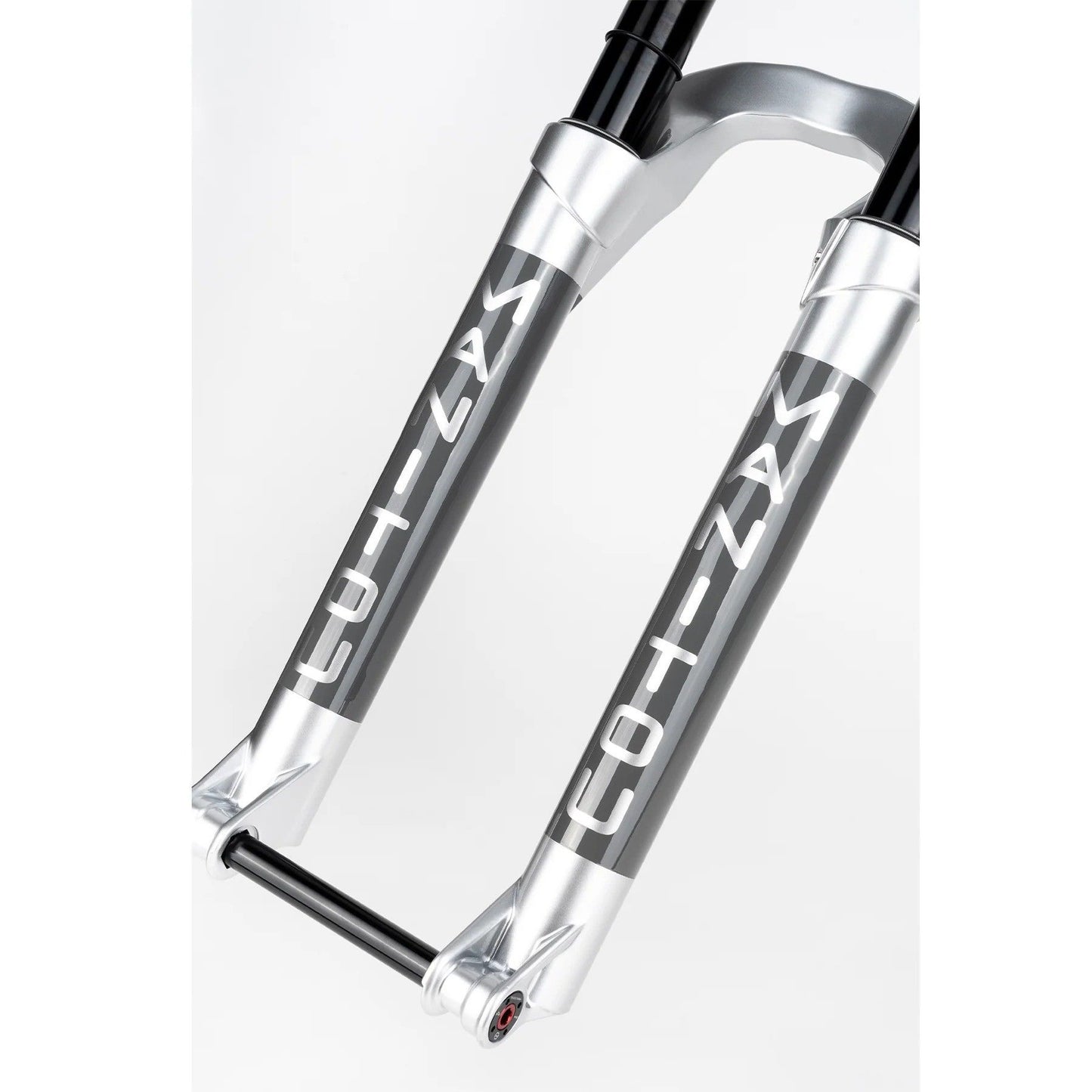

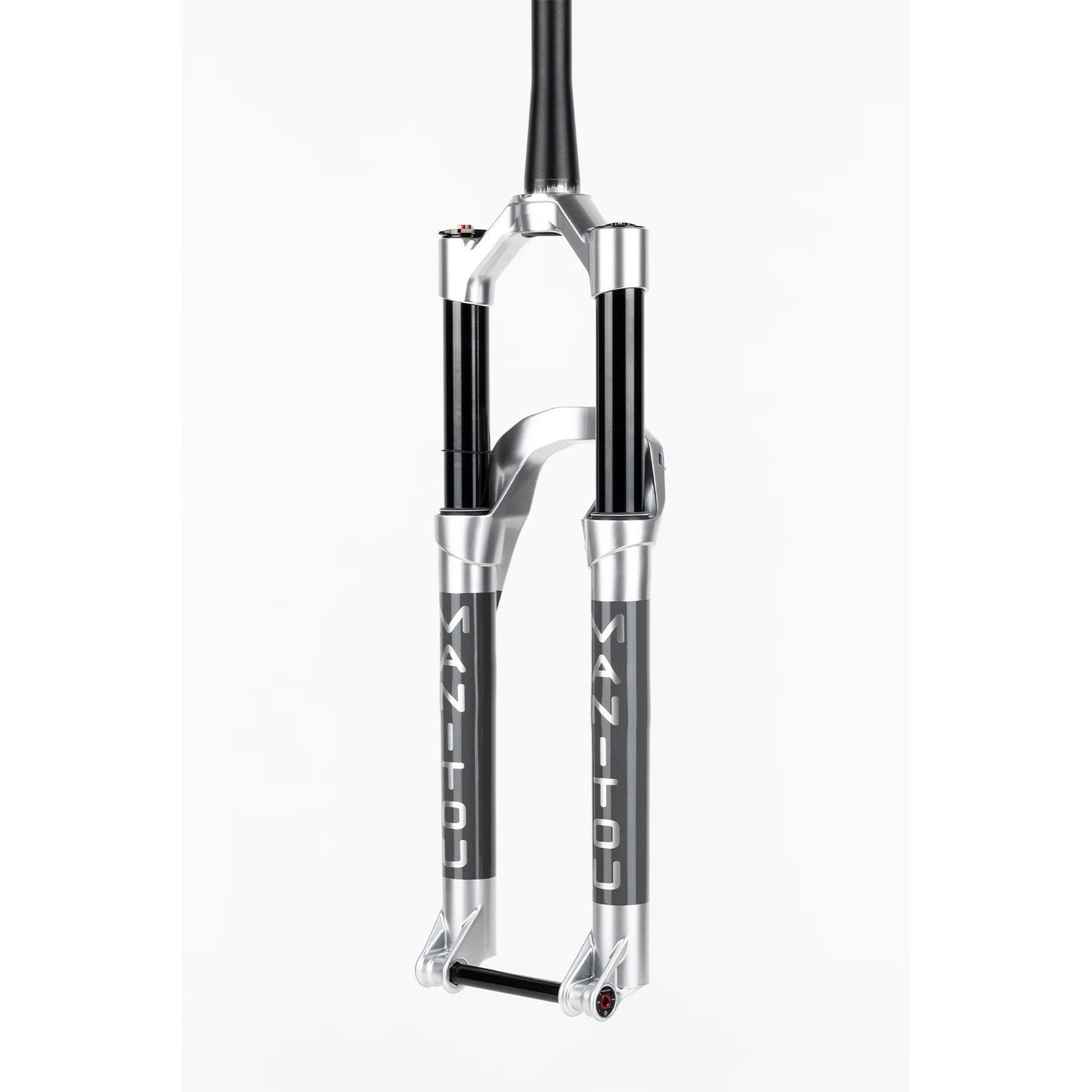

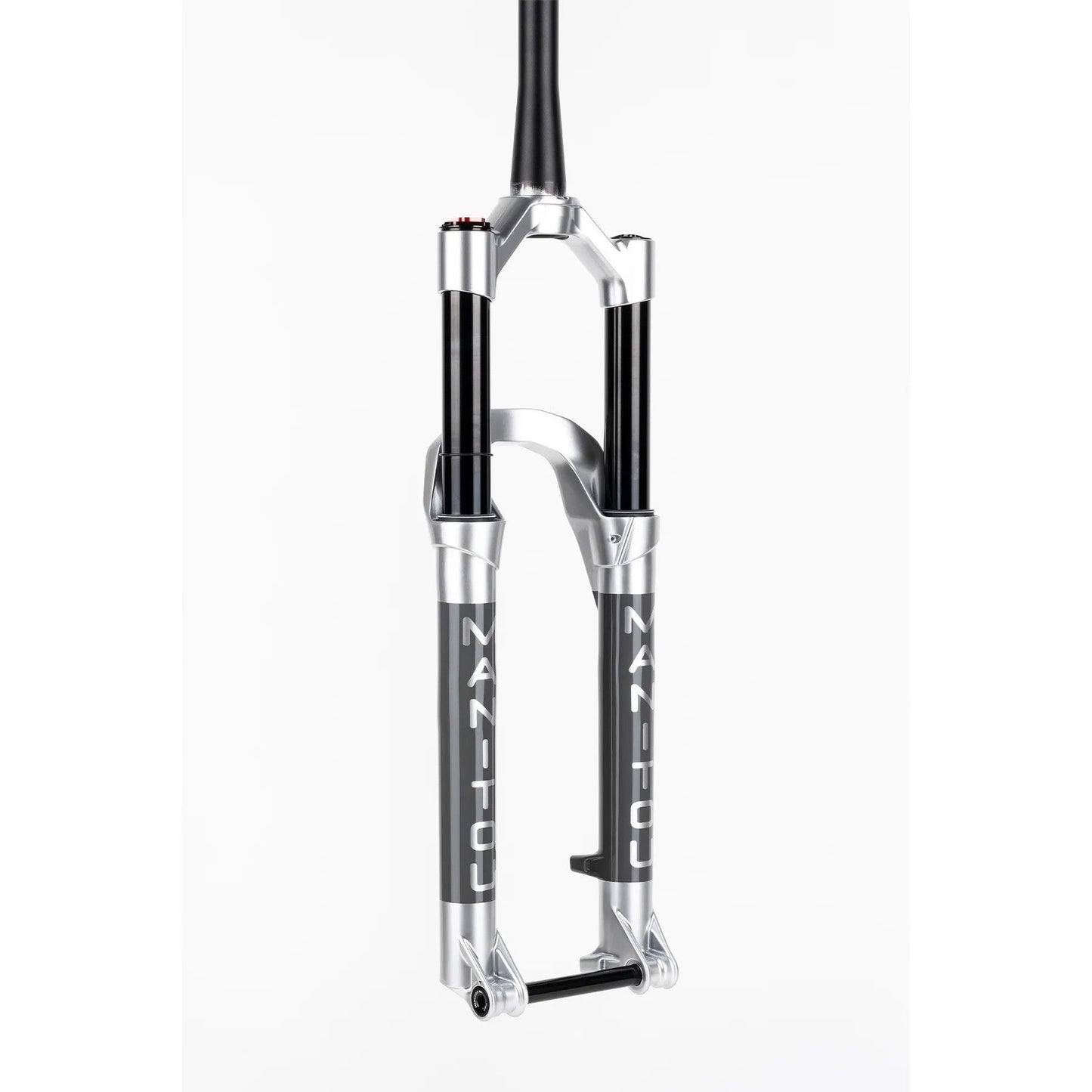

Mattoc Pro Limited Edition

PAINT FROM THE PAST, PERFORMANCE FROM THE FUTURE

The original Manitou fork was versatile by necessity when, regardless of your discipline, there was one choice for your suspension needs. The new Manitou Mattoc Pro Limited Edition borrows its iconic look from 1992 yet takes all the technology from 2024 and packs it in a 34mm stanchion 29” wheel package that spans multiple riding disciplines.

Out of the box, the Mattoc Pro LE is configured to 140mm travel. With the travel spacers included in the box, along with the easy-to-follow service instructions found on Manitoumtb.com, the travel can be internally adjusted from 110-150mm.

Key Features

• 59 grams decrease from the previous model.

• DoradoTM air allows for internal travel adjustments with no added parts. New travel spacers account for negative air volume change, so the 110mm fork has the same initial stroke feel as the 150mm.

• Dorado Air spring systems contain a unique balancing valve that equalizes the positive and negative air chambers during the air fill process. This gives the spring rate a consistent feel without any flat or dead spots in the stroke, along with giving riders of different weights the same initial stroke feel. Dorado Air is our lightest weight air spring technology.

• Infinite Rate TuneTM (IRT) allows for advanced spring tuning by independently adjusting air pressures in the beginning and end stroke. IRT technology creates a secondary positive air spring that effects only the middle to end stroke of the fork. This allows the main air spring to be set to lower pressures for improved small bump sensitivity while maintaining mid-stroke support and moderate to aggressive end-stroke ramp-up.

• Sealed Dampers offer more consistent damping and lighter break away force, especially over long descents. Our Damper uses a bladder system to compensate for head build up along with a relief valve. Using both systems give us consistency along with long service life. Having non adjustable HBO eases setup for the user.

• TSR (Trail Side Relief) casting bleed screws allow users to release casting pressure from the fork. Releasing casting pressure can improve overall fork feel and small bump compliance.

Specification

•Wheel Size: 29"
•Weight: 1750g
•Offset: 44OS
•Ride Height: 140mm = 552 a2c
•Spring: Dorado Air with Infinite Rate Tune (IRT)
•Compression Damping: Sealed Cartridge TPC+ with Hydraulic Bottom Out (HBO)
•Rebound Damping: Sealed Damper TPC
•Adjustments: Air, IRT, Rebound, HS, and LS Compression
•Steerer: 1.5" Tapered
•Crown: Forged Aluminum, Hollow Bore
•Leg Diameter: 34mm
•Leg Material: 7000 Series Butted Wall Aluminum
•Brake: Post Mount 160mm

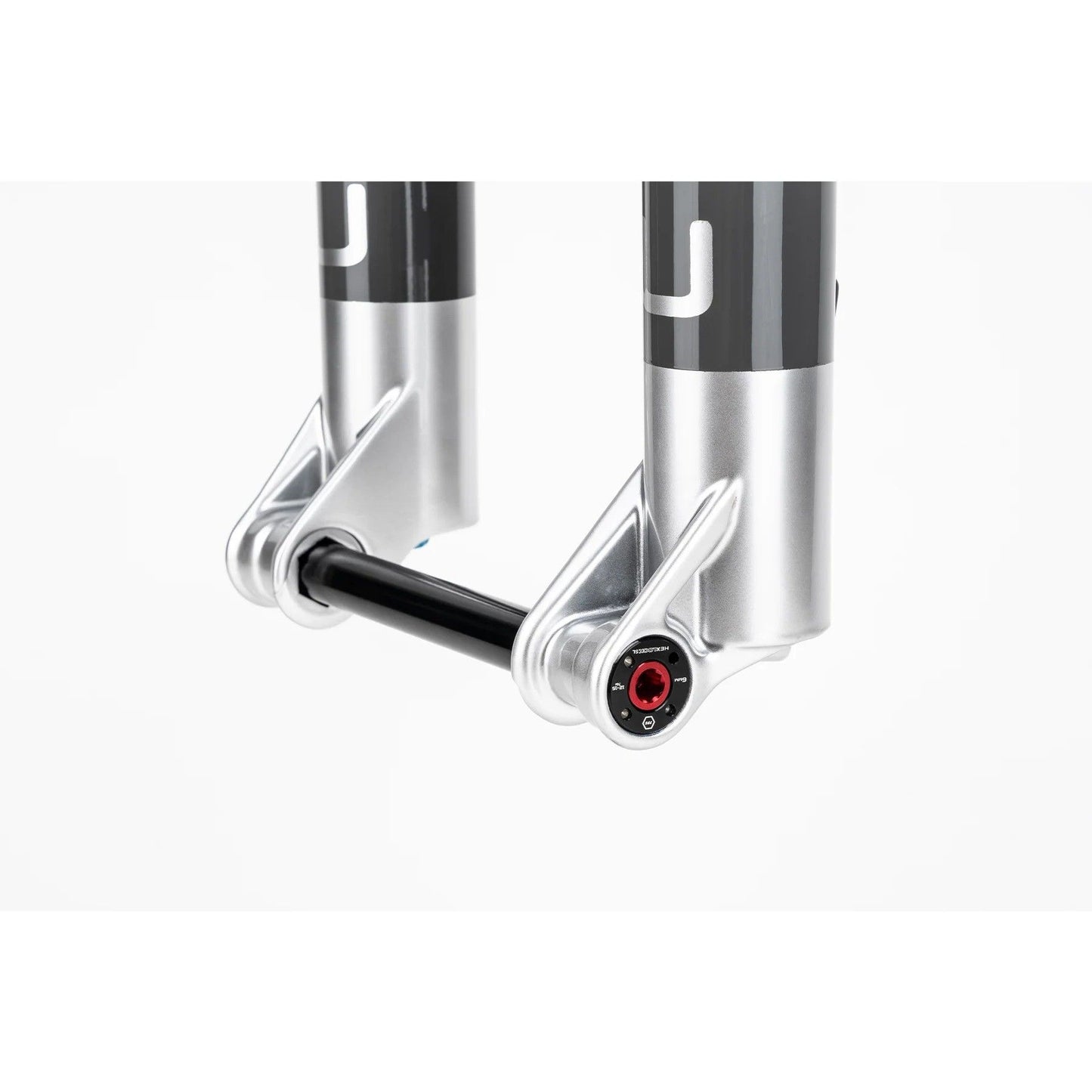

•Axle: 15mm x 110mm Hexlock
•Max Tire Size: 67mm
•Options: Fender Kit, TSR, Hexlock SL2
•E-Bike Compatible: Yes
